    nanoscience and nanotechnology: small is different

Energy Harvesting

We are actively working in position sensitive photodetectors based on organic semiconductors. This research line aims at developing organic photodetectors based on molecular multilayers, which deliver a linear change in photocurrent depending on the position of the impinging light on the pixel. We exploit optical interference in multilayer structures as well as antibatic photocurrent response to produce spatial tuning of photocurrent in one single pixel. [1][2][3] This idea is protected by a patent cooperation treaty (PCT) owned by IMDEA.[4] Based on this concept we have developed devices able to monitor lateral displacements in 1D [1,2] and 2D [5] with a spatial sensitivity in some of them close to 500 m [1].

figure1

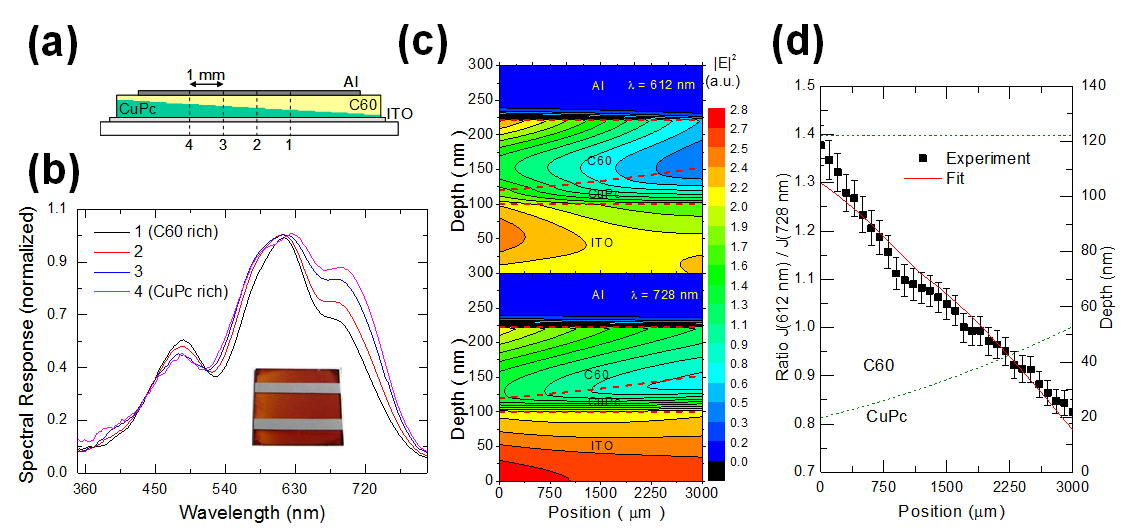

Figure 1. (a) Vertical section of an organic position photodetector composed of two complementary donor-acceptor wedge layers. (b) Spectral response of the photodetector as a function of the position of the light spot along the pixel. Inset: Front view of the device. (c) Model of the penetration of the light across the different layers as a function of position along the pixel. (d) Calibration curve given by the linear variation of the photocurrent ratio at two wavelengths as a function of displacement.


References:
[1] J. Cabanillas-Gonzalez et al., Appl. Phys. Lett. 99, 103305 (2011).
[2] J. Cabanillas-Gonzalez et al., J. Nanosci. Nanotechnol. 13, 1–6, (2013).
[3] M. Campoy-Quiles et al., Org. Photonics Photovolt.1, 11-23 (2013).
[4] J. Cabanillas-Gonzalez and M. Campoy-Quiles, PCT/ES2011/070841.
[5] X. Rodriguez-Martinez et al., submitted.

  • Prof. Juan Cabanillas González

    PhD: Imperial College London, UK
    Previous Position: Politecnico di Milano, Italy
    Research: Pump-probe and photoinduced absoption spectroscopy
    Researcher ID: M-1026-2014
    Joining Date: October, 2009
    User Name: juan.cabanillas
    Telephone: +34 91 299 87 84
    Cabanillas González

    Juan Cabanillas–Gonzalez graduated in Physics at Universidade de Santiago de Compostela in 1999. He got a PhD in Physics from Imperial College London working with photophysics of conjugated polymers with Prof. Donal Bradley. In 2003 he started a post-doctoral stage at Politecnico di Milano with Prof. Guglielmo Lanzani. In 2009 he was appointed Ramon y Cajal fellow at IMDEA Nanociencia.

    Research Lines

    The group investigates the use of time-resolved spectroscopy (transient absorption and time-resolved photoluminescence) for the understanding and optimization of fundamental processes in organic-based devices. Additionally we fabricate and characterize devices such as polymer laser resonators, polymer waveguides or photodectors. Currently, our research is focused on these topics:

    • Conjugated polymers for photonics: relation between structure and light amplification properties. We study the optical gain and stimulated emission properties of conjugated polymers with femtosecond transient absorption spectroscopy. We focus on chemical structures designed to promote optical gain upon reducing inter-chain interactions. Examples are conjugated polyrotaxanes with cyclodextrin rings surrounding the backbone, conjugated molecules with bulky side-chain substituents or polymers with self-threading side-chains.

    • Exciton dynamics in conjugated polymer blends. Host: guest conjugated polymer mixtures coupled by Förster resonance energy transfer are suitable candidates as optical gain medium in laser cavities. Promotion of polymer miscibility and hindrance of loss mechanisms like exciton-exciton annihilation or polaron absorption are crucial for outstanding light amplifying properties. We aim at promoting energy transfer and guest radiative decay rates upon structure and morphology optimization through control of different parameters, (e.g. molecular weights, side-chain substitution, solvents for film processing).

    • Fabrication and characterization of polymer waveguides and laser resonators by soft nanoimprint lithography. We use soft nanoimprint lithography to transfer periodic patterns onto flexible substrates subsequently coated with conjugated polymer. Upon choosing the appropriate pitch for the periodic pattern we can achieve confinement of the emission in the conjugated polymer film and amplification of the optical cavity modes. This research line is carried out in collaboration with the group of Nanostructured Functional Surfaces at IMDEA Nanociencia.

    • Fluorescent chemosensors. We investigate the use of fluorescence, amplified spontaneous emission and laser action in cavity resonators as transduction signal for sensing analytes with high sensitivity in the gas or liquid phase. For this purpose we exploit the luminescent properties of electron-rich conjugated polymers and organic dyes and their tendency to undergo fluorescence quenching in the presence of analytes with large electron affinity.

    Relevant publications

    • "Host Exciton Confinement for Enhanced Förster-Transfer-Blend Gain Media Yielding Highly Efficient Yellow-Green Lasers". Zhang, Q., Liu, J., Wei, Q., Guo, X., Xu, Y., Xia, R., Xie, L., Qian, Y., Sun, C., Lüer, L., Cabanillas-Gonzalez, J., Bradley, D.D.C., Huang, W. (2018) Advanced Functional Materials, 28 (17), art. no. 1705824. DOI: 1002/adfm.201705824. Open Access
    • “Role of Amorphous and Aggregate Phases on Field-Induced Exciton Dissociation in a Conjugated Polymer”, Marta M. Mróz et col. Phys. Review B 87, 035201 (11pp) (2013)
    • “Pump-Probe Spectroscopy in Organic Semiconductors: Monitoring Fundamental Processes of Relevance in Optoelectronics” J. Cabanillas- Gonzalez et col. Adv. Mat. (2011), 23, 5468-5485
    • “Photoinduced Transient Stark Spectroscopy in Organic Semiconductors: a Method for Charge Mobility Determination in the Picosecond Regime”, J. Cabanillas-Gonzalez et col. Phys. Rev. Lett. 96,  106601 (4pp) (2006)
